Versa Lift Model 32HXX: Corded Remote 17-20 ft
The Versalift Model 32HXX has a 15' cord with a controller in the end and is for distances from the attic floor to the garage floor measuring between 17 -20 ft.

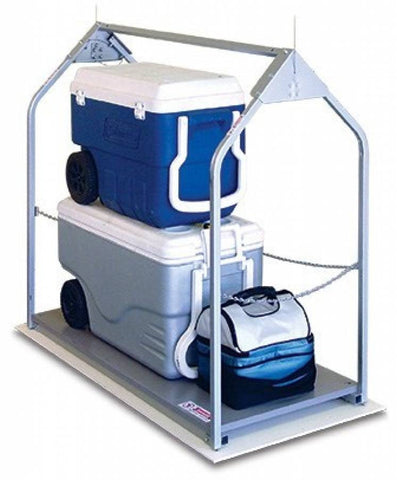

Versa Lift Model 32HXX Standard has a 35 cubic foot 250 lb. lifting capacity, the lifting platform is 28.75” x 56”. This unit requires 60” of headroom clearance in the attic. For Model 32 specifications, Rough-In Guide, Installation Guide and Owners Manual click on "MANUALS" on the menu bar above. Rough in measurements are 30.5" x 58.5"
Max. Lift Height
20 ft.
Garage Floor to Attic Floor Lift Range
17-20 ft.
Controller Type
Corded (15 ft.)
Load Capacity
250 lbs.
Application
Storage lift
Material Type
Powder-coated steel
Power Requirements
115 volt
Dimensions
Outside 32 1/2" W x 60" H x 69" L Inside 28 3/4" W x 52 3/4" H x 56" L = 35 CU. Ft. Platform Size: 28 3/4" W x 56" L
Opening Required
30 1/2" x 58 1/2"
Manufacturer Warranty
36 months limited, parts/no labor
Ship Weight
168.0 lbs. (Ships UPS in 3 boxes)
Versa Lift Model 32HXX Standard has a 35 cubic foot 250 lb. lifting capacity, the lifting platform is 28.75” x 56”. This unit requires 60” of headroom clearance in the attic. For Model 32 specifications, Rough-In Guide, Installation Guide and Owners Manual click on "MANUALS" on the menu bar above. Rough in measurements are 30.5" x 58.5"
