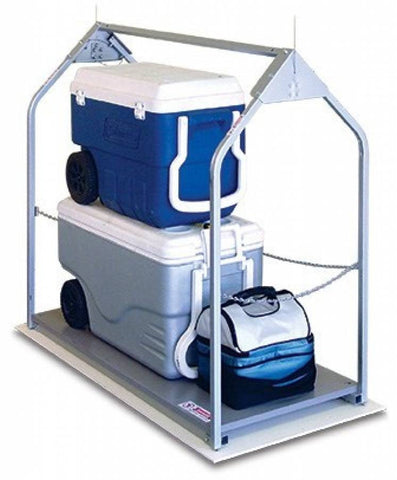

Versa Lift Model 32: Corded Remote 8-11 ft

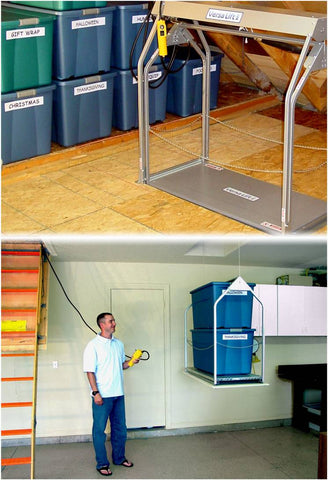

The Versalift Model 32 Standard unit has a 15' controller cord with the switch in the handle and is for attic floor to garage floor distances of 8-11 ft.
Versa Lift Model 32H Standard has a 35 cubic foot 250 lb. lifting capacity, the lifting platform is 28.75” x 56”. This unit requires 60” of headroom clearance in the attic. For Model 32 specifications, Rough-In Guide, Installation Guide and Owners Manual click on "MANUALS" on the menu bar above. Rough in measurements are 30.5" x 58.5"
Max. Lift Height
11 ft.
Garage Floor to Attic Floor Lift Range
8-11 ft.
Controller Type
Corded (15 ft.)
Load Capacity
250 lbs.
Application
Storage lift
Material Type
Powder-coated steel
Power Requirements
115 volt
Dimensions
Outside 32 1/2" W x 60" H x 69" L Inside 28 3/4" W x 52 3/4" H x 56" L = 35 CU. Ft. Platform Size: 28 3/4" W x 56" L
Opening Required
30 1/2" x 58 1/2"
Manufacturer Warranty
36 months limited, parts/no labor
Ship Weight
168.0 lbs. (Ships UPS in 3 boxes)
Ceiling Panel Dimensions
32" x 60"
Versa Lift Model 32H Standard has a 35 cubic foot 250 lb. lifting capacity, the lifting platform is 28.75” x 56”. This unit requires 60” of headroom clearance in the attic. For Model 32 specifications, Rough-In Guide, Installation Guide and Owners Manual click on "MANUALS" on the menu bar above. Rough in measurements are 30.5" x 58.5"
