Versa Lift Model 24WHXX: Wireless Remote 17-20 ft

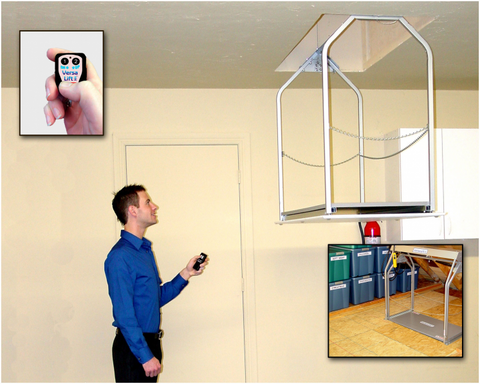

The Versalift Model 24 WHXX is a wireless remote controller for attic floor to garage floor measurements from 17-20 ft.

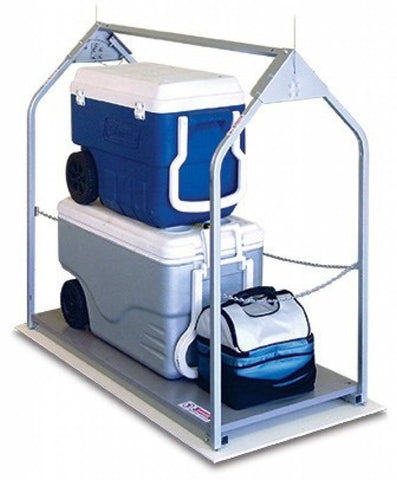

Versa Lift Model 24WHXX has a 15.3 cubic foot, 200 lb. lifting capacity. The lifting platform is 20-3/4" x 44". For Model 24 Specifications, Rough-In Guide, Installation Guide and Owners Manual click on "MANUALS" on the menu bar above. Rough In Measurements: 20.5" x 46.5"
Max. Lift Height
20 ft.
Garage Floor to Attic Floor Lift Range
17-20 ft.
Controller Type
Wireless
Load Capacity
200 lbs.
Application
Storage lift
Material Type
Powder-coated steel
Power Requirements
115 volt
Dimensions
Outside 25 5/8" W x 48" H x 57" L Inside 20 3/4" W x 39" H x 44" L = 15.3 CU. Ft. Platform Size: 20 3/4" W x 44" L
Opening Required
22 1/2" x 46-1/2"
Manufacturer Warranty
36 months limited, parts/no labor
Ship Weight
168.0 lbs. (Ships UPS in 3 boxes)
Versa Lift Model 24WHXX has a 15.3 cubic foot, 200 lb. lifting capacity. The lifting platform is 20-3/4" x 44". For Model 24 Specifications, Rough-In Guide, Installation Guide and Owners Manual click on "MANUALS" on the menu bar above. Rough In Measurements: 20.5" x 46.5"
