Versa Lift Model 24MHXX: Mounted Wall Switch 17-20 ft

  • $2,647.00

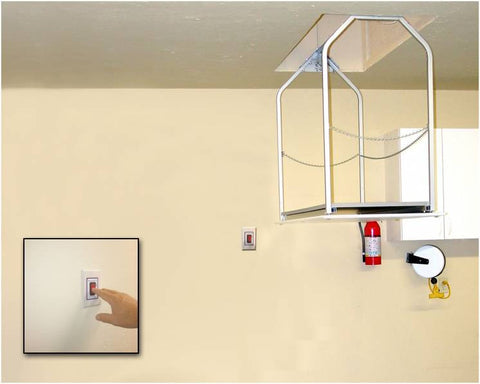

The 24 MHXX includes two Wall Switches, One mounts upstairs, the other downstairs. The downstairs switch has a key lock that allows the operator to "lock out" the unit when not in use.

Max. Lift Height

20 ft.

Garage Floor to Attic Floor Lift Range

17-20 ft.

Controller Type

2 Mounted Wall Switches

Load Capacity

200 lbs.

Application

Storage lift

Material Type

Powder-coated steel

Power Requirements

115 volt

Dimensions

Outside 25 5/8" W x 48" H x 57" L Inside 20 3/4" W x 39" H x 44" L = 15.3 CU. Ft. Platform Size: 20 3/4" W x 44" L

Opening Required

22 1/2" x 46-1/2"

Manufacturer Warranty

36 months limited, parts/no labor

Ship Weight

168.0 lbs. (Ships UPS in 3 boxes)

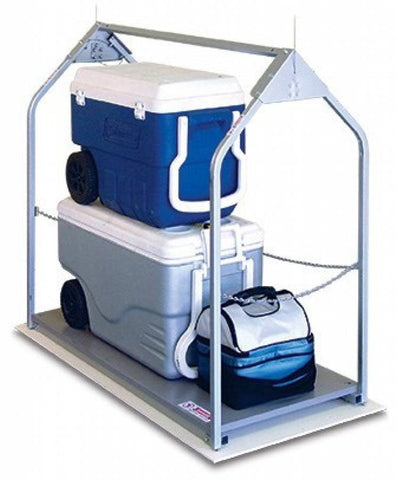

Versa Lift Model 24MHXX has a 15.3 cubic foot, 200 lb. lifting capacity. The lifting platform is 20-3/4" x 44". For Model 24 Specifications, Rough-In Guide, Installation Guide and Owners Manual click on "MANUALS" on the menu bar above. Rough In Measurements: 20.5" x 46.5"
