Versa Lift Model 24M: Mounted Wall Switch 8-11 ft

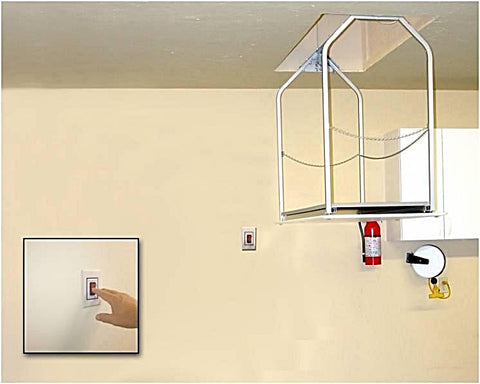

The 24 M includes two Wall Switches, One mounts upstairs, the other downstairs. The downstairs switch has a key lock that allows the operator to "lock out" the unit when not in use.

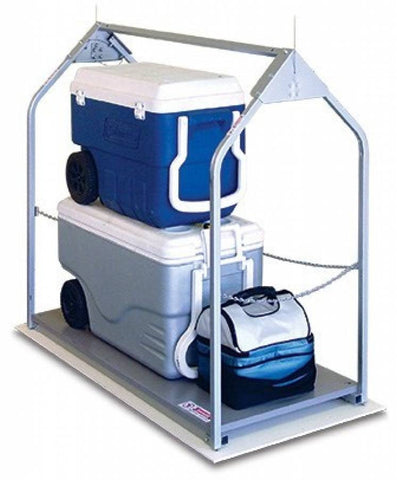

Versa Lift Model 24M has a 15.3 cubic foot, 200 lb. lifting capacity. The lifting platform is 20-3/4" x 44". For Model 24 Specifications, Rough-In Guide, Installation Guide and Owners Manual click on "MANUALS" on the menu bar above. Rough In Measurements: 20.5" x 46.5"
Max. Lift Height
11 ft.
Garage Floor to Attic Floor Lift Range
8-11 ft.
Controller Type
Mounted Wall Switch
Load Capacity
200 lbs.
Application
Storage lift
Material Type
Powder-coated steel
Power Requirements
115 volt
Dimensions
Outside 25 5/8" W x 48" H x 57" L Inside 20 3/4" W x 39" H x 44" L = 15.3 CU. Ft. Platform Size: 20 3/4" W x 44" L
Ceiling Panel Dimensions
24" x 48"
Opening Required
22 1/2" x 46-1/2"
Manufacturer Warranty
36 months limited, parts/no labor
Ship Weight
168.0 lbs. (Ships UPS in 3 boxes)
Versa Lift Model 24M has a 15.3 cubic foot, 200 lb. lifting capacity. The lifting platform is 20-3/4" x 44". For Model 24 Specifications, Rough-In Guide, Installation Guide and Owners Manual click on "MANUALS" on the menu bar above. Rough In Measurements: 20.5" x 46.5"
